OPTICAL FIBER ATTENUATOR, IN-LINE

OPTICAL FIBER ATTENUATOR

FEATURES and BENEFITS

- Optical Performance 100% factory tested

- PC, UPC and APC available

- Polarization insensitive

- Compact design fits in existing connections or patch panels

- Convenience and easy of handling


APPLICATION

- Telecommunication Networks

- CATV Networks

- Data Communications Networks

- Instrumentation

- Local Area Networks

SPECIFICATION
Characteristics
Conditions
Values
Insertion Loss
1 ~ 30 dB
±0.5 dB @ Attn ≤ 10 dB
±10% @ Attn > 10 dB
Return Loss
PC
>45 dB

UPC
>55 dB

APC
>65 dB
Durability
500 matings
<0.2 dB
Temperature Cycling
-40 ~ +80 (42 Cycles)
<0.2 dB
Humidity Cycling
75, 95%/336 Hr
<0.2 dB
Vibration
10 ~ 55 Hz (2 Hr)
<0.2 dB
Impact
1.5 m drop, 8 times<0.2 dB

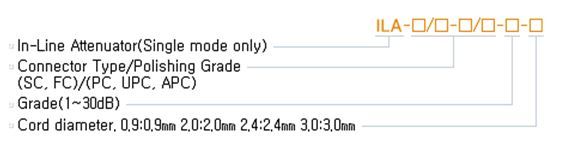

ORDERING INFORMATION
OPTICAL FIBER IN-LINE

FEATURES and BENEFITS

- Optical Performance 100% factory tested

- Enviromentally stable

- Precision ceramic ferrule with endface geo metryper IEC proposal

- Polarization insenstive

- Standard length assemblies in stock


APPLICATION

- Telecommunication Networks

- Data Communication

- Instrumentation

- CATV Networks

- Active device termination

SPECIFICATION
Characteristics
Conditions
Values
Attenuation Values
*including connector termination
±0.5 dB
( for 1 dB ~ 10 dB)


±0.5 dB
( for 1 dB ~ 30 dB)
Return Loss
SPC
>45 dB

UPC
>55 dB

APC
>65 dB
Durability
500 matings
<0.2 dB
Temperature Cycling
-40 ~ +80 (42 Cycles)
<0.2 dB
Humidity Cycling
80, 95%/336 Hr
<0.2 dB
Vibration
10 ~ 55 Hz (2 Hr)
<0.2 dB
Impact
1.5 m drop, 8 Cycles
<0.2 dB
ORDERING INFORMATION
